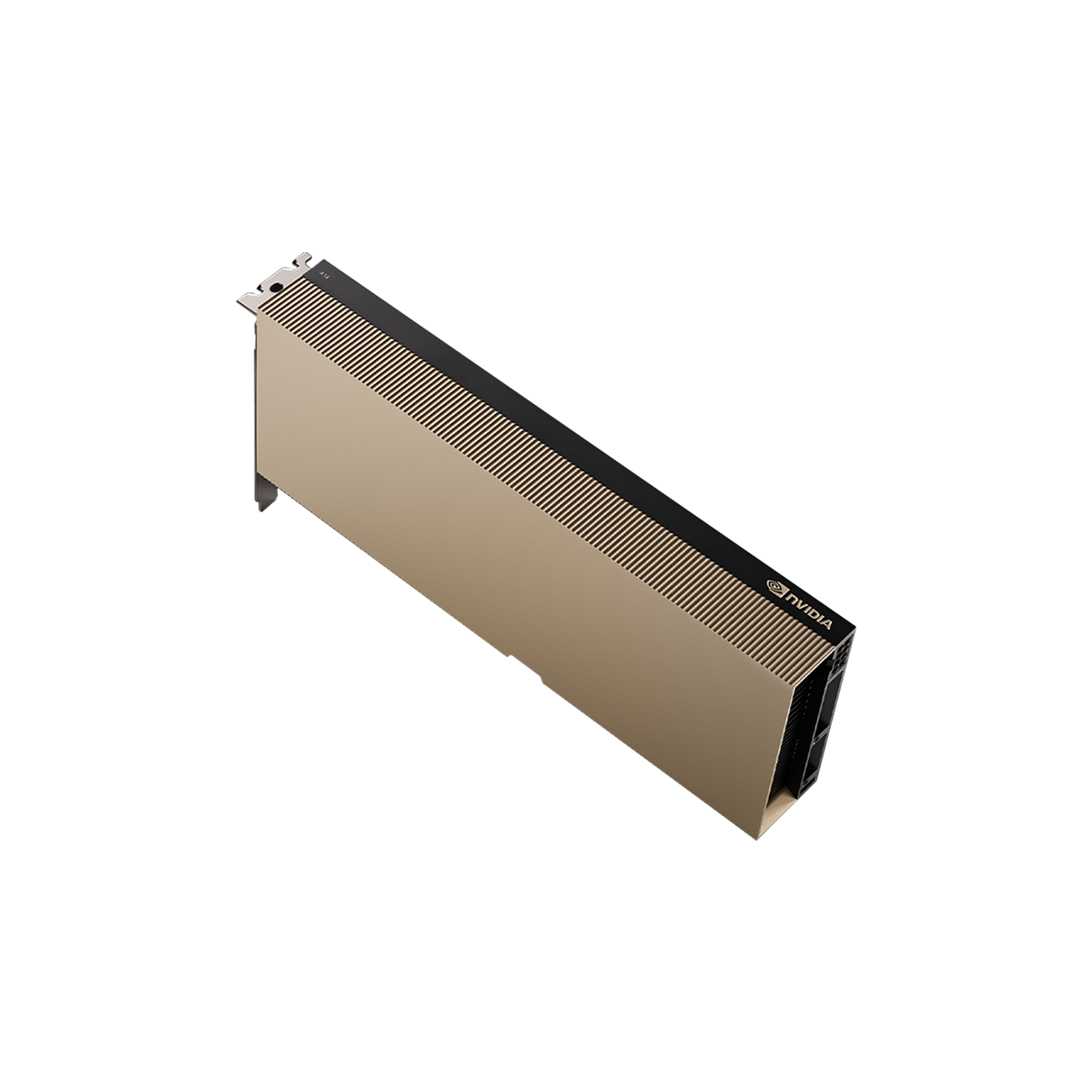

NVIDIA A16 PCIe 64GB
NV-A16-PCI-64G
The NVIDIA A16 PCIe 64GB quad-GPU board combines 4 physical Ampere graphics engines on a single PCIe card for high-density Virtual Desktop Infrastructure (VDI) and remote graphics.
Key Specifications
- Brand / Manufacturer: NVIDIA
- MPN / SKU: NV-A16-PCI-64G
- Architecture: NVIDIA Ampere
- GPU Memory: 64GB GDDR6 (4x 16GB)
- Memory Bandwidth: 4x 200 GB/s (800 GB/s total)
- CUDA Cores: 5,120 (4x 1,280 GPUs)
- Tensor Cores: 160 (3rd Gen)
- RT Cores: 40 (2nd Gen)
- Interface: PCIe 4.0 x16
- Form Factor: Dual Slot FHFL
- Thermal Management: Passive Server Airflow
- Max Power Consumption: 250W
- Box Shipping Weight: 2.60 kg (2600g)
