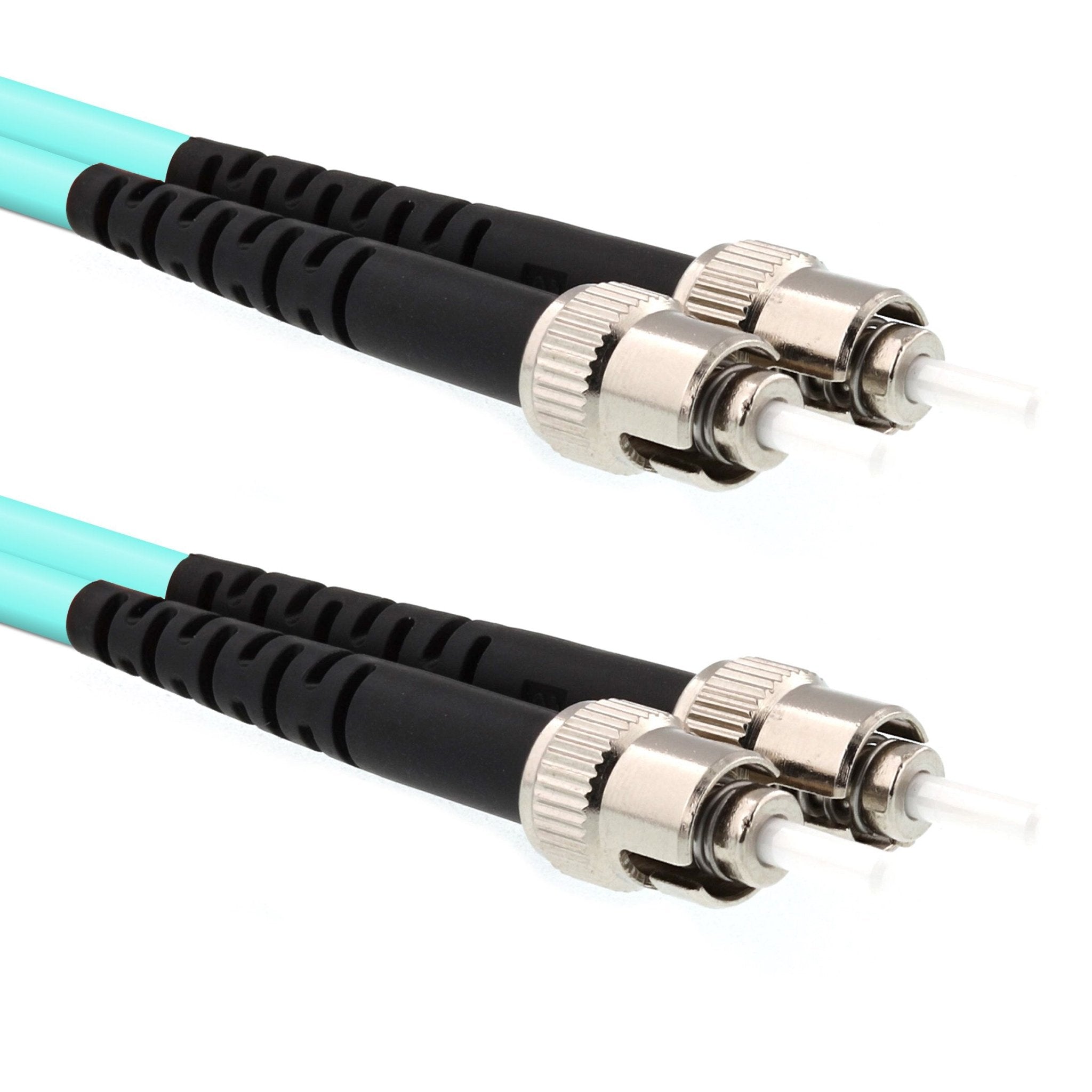

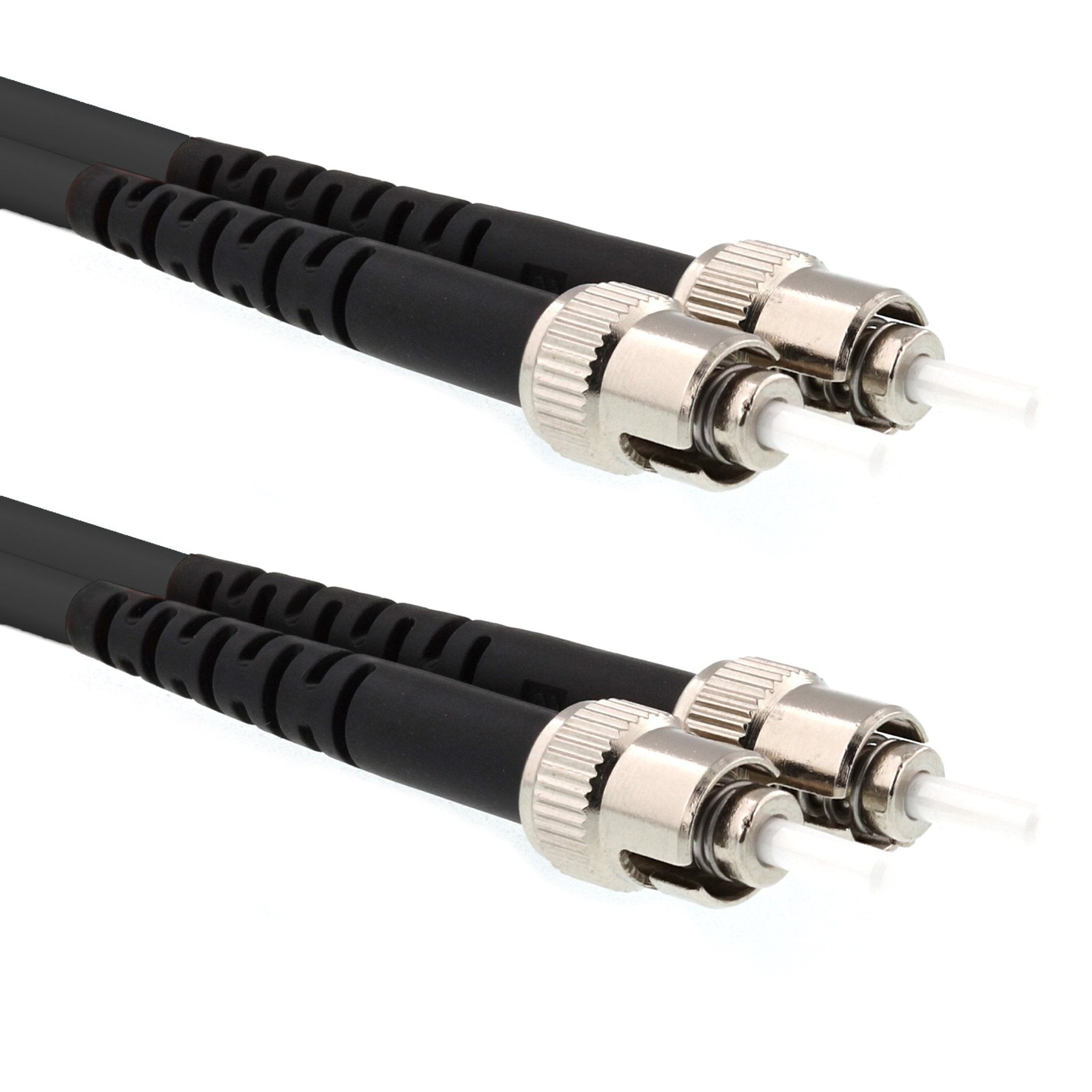

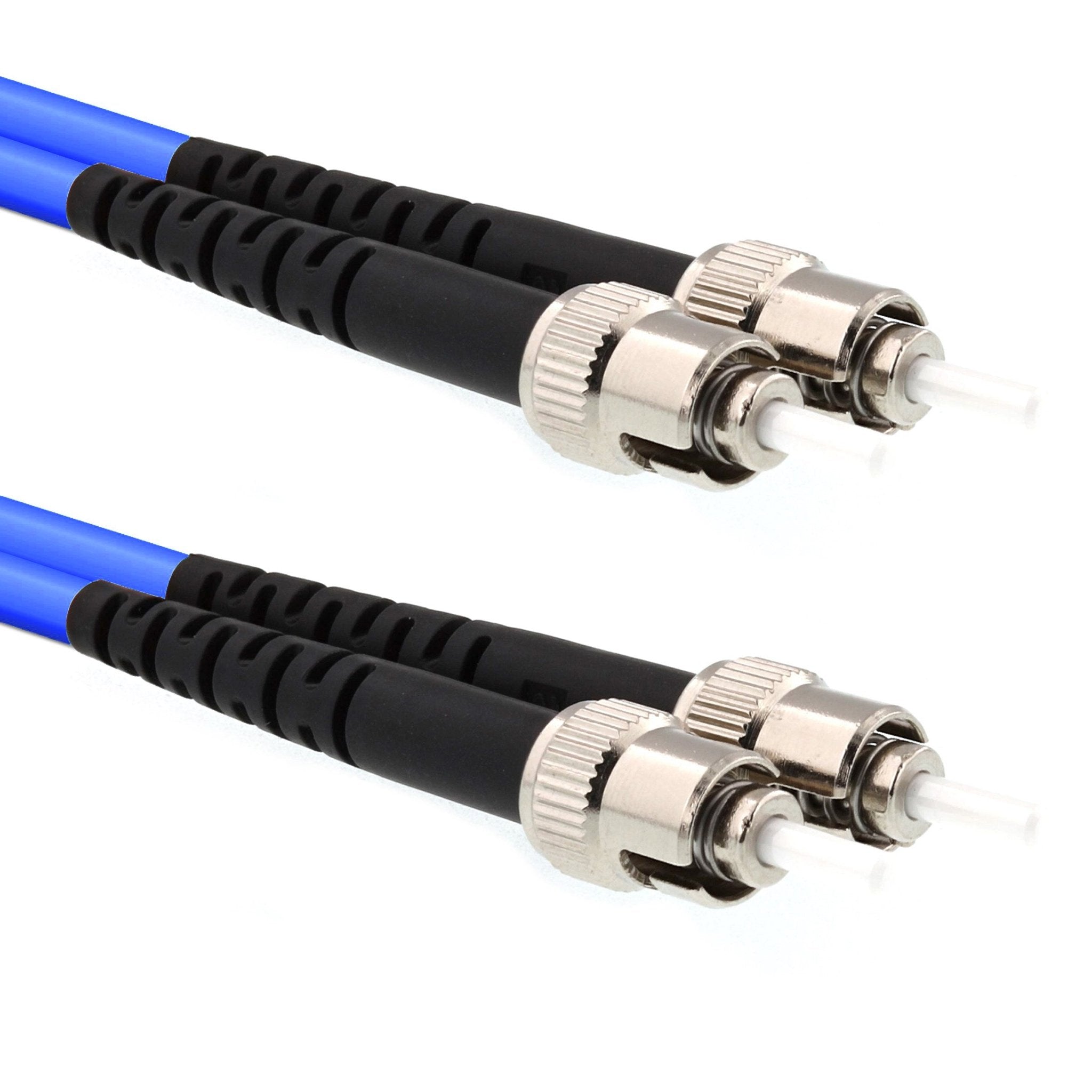

CCD ST-ST Multimode OM1 Duplex Fibre Optic Patch Cable

SKU: CCD-ST-ST-MM-OM1-0.5M-RED
Sale price$8.80 AUD

GST Included

Made-to-Order (14-Day Delivery Time)


Connector: ST-ST
Size: 0.5 Metre
Colour: Red

Core Specifications & Benefits:

  • Designed for legacy multimode applications.
  • Supports data transmission over moderate distances.
  • Reliable performance for established network infrastructures.
  • Multimode OM1 Fibre: 62µm Core, 125µm Cladding.
  • LSZH Jacket: Low Smoke Zero Halogen.
  • Ferrule Housing: Zirconia Ceramic.

Standards Compliance:

  • IEC 11801-1
  • IEC 60793-2-10 A1
  • IEC 61304: Low Smoke
  • IEC 60754: Halogen & Corrosion Free
  • IEC 60332: Flame Retardant
  • TIA-492AAAF A1
  • Telcordia GR-326-CORE
  • RCM Compliance (SDoC)

Optical Characteristics:

  • Attenuation:
    • 850nm: ≤ 2.7 dB/km
    • 1300nm: ≤ 0.6 dB/km
  • Overfilled Modal Bandwidth:
    • 850nm: ≥ 200 MHz·km
    • 1300nm: ≥ 500 MHz·km
  • Numerical Aperture: 0.275 ± 0.015
  • Group Refractive Index:
    • 850nm: 1.496
    • 1300nm: 1.491
  • Zero Dispersion Wavelength (λ0): 1320-1365 nm
  • Zero Dispersion Slope (S0):
    • 1320nm ≤ λ0 ≤ 1348nm: ≤ 0.11 ps/(nm²·km)
    • 1348nm ≤ λ0 ≤ 1365nm: ≤ 0.001(1458-λ0) ps/(nm²·km)
  • Macrobending Loss (100 Turns @ 37.5 mm Radius):
    • 850nm: ≤ 0.50 dB
    • 1300nm: ≤ 0.50 dB
  • Backscatter Characteristics (1300nm Step): ≤ 0.10 dB
  • Irregularities Over Fibre Length and Point Discontinuity: ≤ 0.10 dB
  • Attenuation Uniformity: ≤ 0.10 dB/km
  • Insertion Loss: ≤ 0.3 dB
  • Optical Return Loss: UPC MM: > 20 dB
  • Repeatability: ≤ 0.2 dB
  • Changeability: ≤ 0.1 dB

Geometry Characteristics:

  • Core Diameter: 62.5 ± 2.5μm
  • Core Non-Circularity: ≤ 5.0%
  • Cladding Diameter: 125.0 ± 1.0μm
  • Cladding Non-Circularity: ≤ 1.0%
  • Coating Diameter: 245 ± 7μm
  • Coating/Cladding Concentricity Error: ≤ 10.0μm
  • Coating Non-Circularity: ≤ 6.0%
  • Core/Cladding Concentricity Error: ≤ 1.5μm

Environmental & Mechanical:

  • Operating/Storage Temperature: -40°C to 80°C
  • Environmental Stability: Attenuation variation ≤0.10dB/km under temperature, humidity, and immersion conditions.
  • Minimum Bend Radius: 35mm
  • Proof Test: ≥ 9.0 N, ≥ 1.0%, ≥ 100 kpsi
  • Macro-bend Loss: ≤ 0.05 dB
  • Coating Strip Force: 1.5 N (typical), ≥ 1.3 N (min) / ≤ 8.9 N (max)
  • Dynamic Fatigue Parameter: 20
