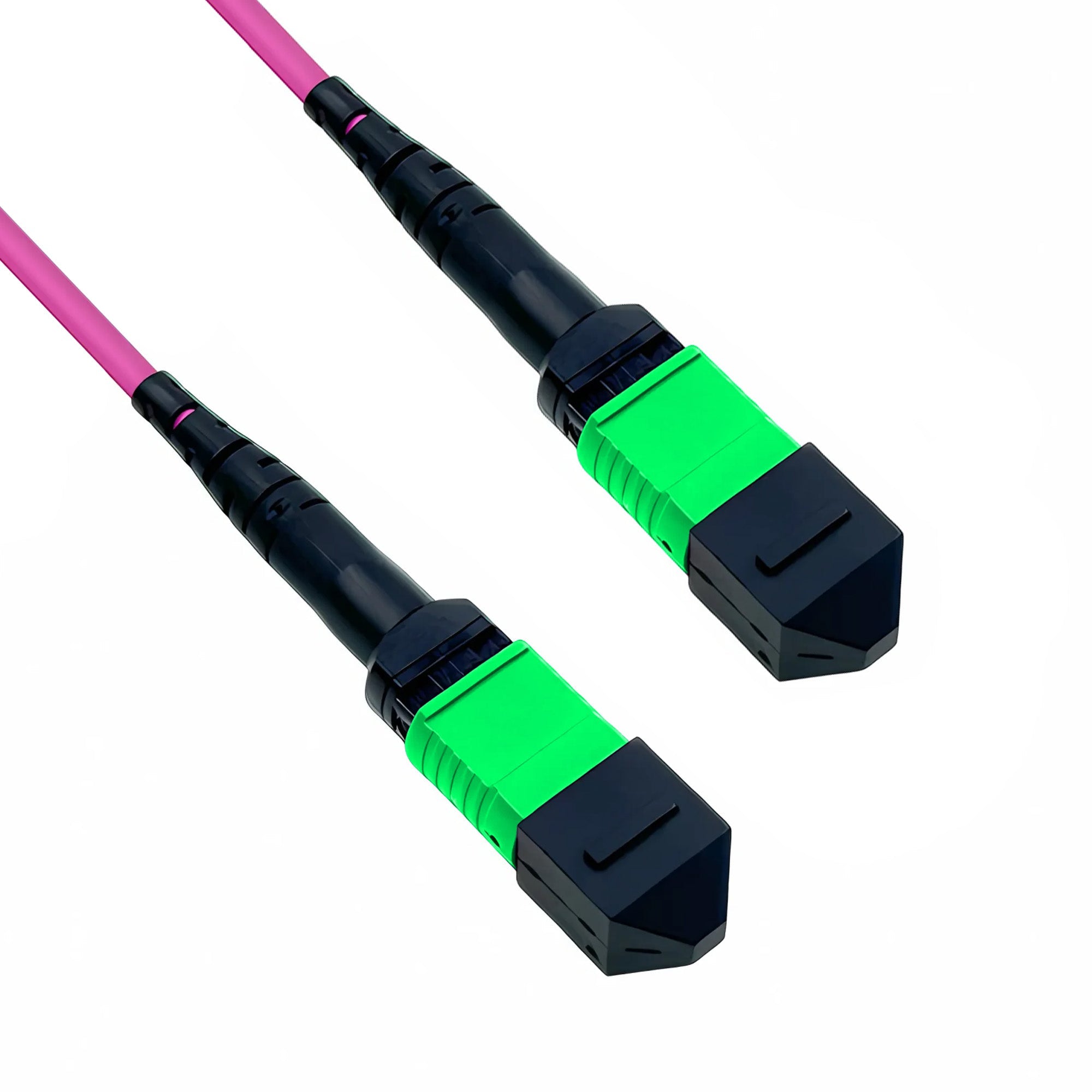

CCD MPO-16 Multimode OM4 Fibre Optic Cable

SKU: CCD-MPO16-OM4-F-APC-A-0.5M
Sale price$85.00 AUD

GST Included

Made-to-Order (14-Day Delivery Time)


Connector: APC/APC Female
Size: 0.5 Metre
Polarity: Type A (Straight)

A High-Performance, High-Density Fibre Optic Solution

In today's high-bandwidth data centres and networks, efficient cable management and maximum capacity are crucial. Our MPO-16 OM4 fibre cables address these needs head-on. The 16-fibre design enables high-density connectivity, simplifying installations and ensuring top-tier performance and reliability.

Key Features:

  • OM4 Multimode Fibre: Supports super-fast data transfer over shorter distances.
  • MPO-16 Connector: Provides high-density connectivity and easy termination.
  • Durable Construction: Built to last, ensuring reliable performance.
  • Low-Loss Design: Minimises signal degradation for optimal data transfer.

Applications:

  • Data Centre Interconnects: Connect high-density equipment racks and switches.
  • High-Speed Network Cabling: Support 10G, 40G, and 100G Ethernet applications.

Technical Specifications:

  • Fibre Type: OM4 Multimode Fibre
  • Connector Type: MPO-16
  • Cable Jacket: LSZH (Low Smoke Zero Halogen)
  • Fibre Polish: APC
  • Polarity: Type A or B
  • Housing: Standard with Ceramic Ferrule

    Standards Compliance:

      • IEC 61754-20
      • IEC 61300-3-4
      • IEC 11801
      • IEC 61304: Low Smoke
      • IEC 60754: Halogen & Corrosion Free
      • IEC 60332: Flame Retardant
      • TIA/EIA-568-C.3
      • Telcodia GR-1435-CORE
      • RCM Compliance (SDoC)

      Optical Performance:

      • Core/Cladding: 50/125µm
      • Wavelength: 850/1300nm
      • Max Attenuation: 2.4/0.6 (dB/km)
      • Bandwidth: 4700 Mhz/km
      • Insertion Loss: ≤ 0.3 dB
      • Optical Return Loss: -25 dB

        Environmental & Mechanical:

        • Operating Temperature: -40°C to 80°C
        • Storage Temperature: -40°C to 80°C
