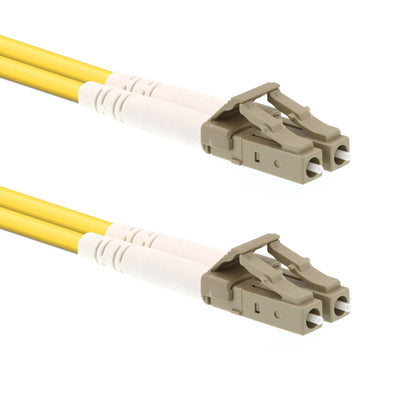

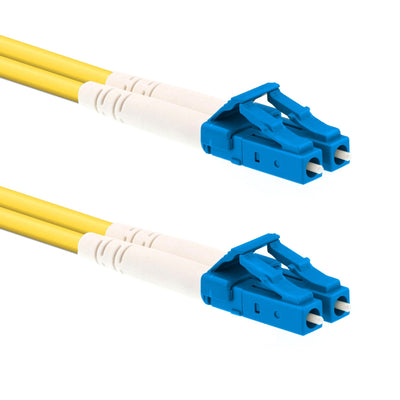

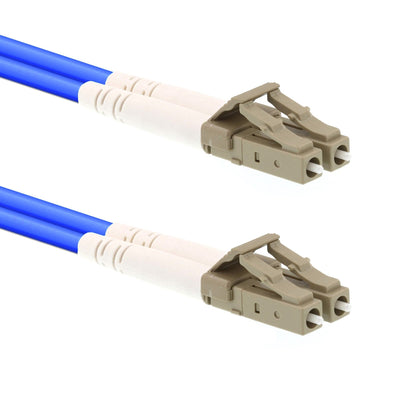

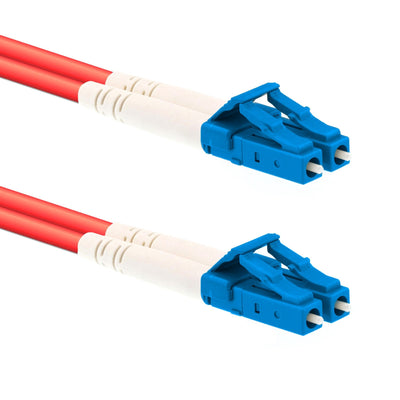

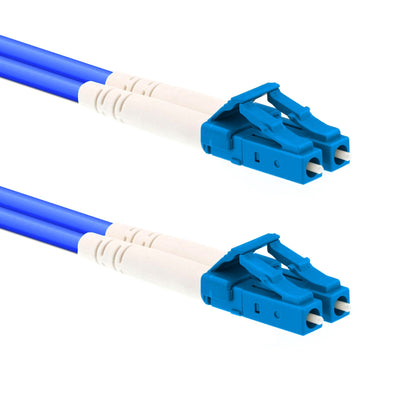

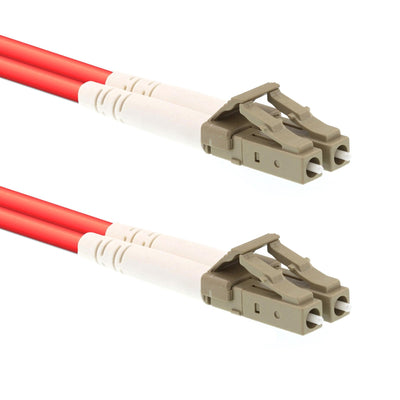

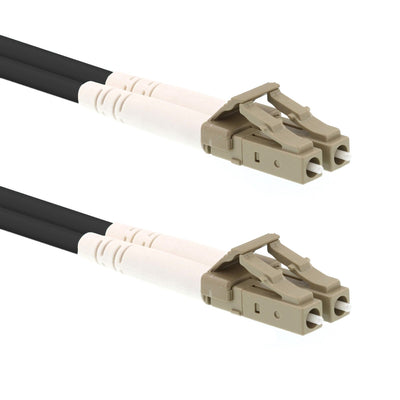

CCD LC-LC Singlemode OS2 Duplex Fibre Optic Patch Cable

Q: What is the difference between Duplex and Simplex?

Simplex Fiber: A single-lane road . Usually, data only travels one way, but "Bi-Di" technology allows two-way traffic on that one lane by using two different colors of light. Duplex Fiber: A two-lane road . Data travels both ways at once because there are two separate strands of glass—one for sending and one for receiving.

Overview

Core Specifications & Benefits:

Expanded Capacity: Full-spectrum operation (1260-1625nm) unlocks 50% more usable wavelengths, significantly boosting transmission capacity.
Future-Proof Performance: Optimized for high-speed technologies like DWDM and CWDM.
Enhanced Wavelength Availability: Suppresses the 1383nm water peak, enabling E-band operation (1360-1460nm) and providing 100nm of additional usable wavelengths.
Seamless Integration: Compatible with existing 1310nm equipment.
Reliable & Robust: Superior protection and consistent strip force stability.
Precision Engineered: Accurate geometrical parameters minimize splicing loss and maximize efficiency.
Single-Mode OS2 Fibre: 9µm core, 125µm cladding.
LSZH Jacket: Low Smoke Zero Halogen.
Ferrule Housing: Zirconia Ceramic.

Standards Compliance:

ITU-T G.652D
IEC 11801-1
IEC 60793-2-50 type B1.3
IEC 61304: Low Smoke
IEC 60754: Halogen & Corrosion Free
IEC 60332: Flame Retardant
Telcordia GR-326-CORE
RCM Compliance (SDoC)

Optical Performance:

Attenuation:
- ≤0.34 dB/km at 1310nm & 1383nm (after H2-aging)
- ≤0.20 dB/km at 1550nm
- ≤0.24 dB/km at 1625nm
Attenuation vs. Wavelength:
- ≤0.03 dB/km (1285-1330nm)
- ≤0.02 dB/km (1525-1575nm)
Chromatic Dispersion Coefficient:
- -3.5 to 3.5 ps/(nm·km) (1285-1340nm)
- ≤18 ps/(nm·km) (1550nm)
- ≤22 ps/(nm·km) (1625nm)
Zero Dispersion Wavelength: 1300-1324nm
Zero Dispersion Slope:
- ≤0.092 ps/(nm²·km)
- Typical 0.086 ps/(nm²·km)
Low PMD: ≤0.06 ps/√km (Link Design Value)
Cable Cutoff Wavelength: ≤1260nm
Mode Field Diameter: 8.7-9.5μm (1310nm), 9.8-10.8μm (1550nm)
Effective Group Index: 1.466 (1310nm), 1.467 (1550nm)
Point Discontinuities: ≤0.05 dB (1310nm & 1550nm)
Insertion Loss: ≤ 0.3 dB
Optical Return Loss:
- PC SM: > 45 dB
- UPC SM: > 50 dB
- APC SM: > 60 dB
Repeatability: ≤ 0.2 dB
Changeability: ≤ 0.1 dB

Geometrical Characteristics:

Cladding Diameter: 125.0 ± 0.7 μm
Cladding Non-Circularity: ≤ 1.0%
Coating Diameter: 235-250 μm
Coating-Cladding Concentricity Error: ≤ 12.0 μm
Coating Non-Circularity: ≤ 6.0%
Core-Cladding Concentricity Error: ≤ 0.6 μm

Environmental & Mechanical:

Operating/Storage Temperature: -40°C to 80°C
Environmental Stability: Attenuation variation ≤0.05 dB/km under temperature, humidity, and immersion conditions.
Minimum Bend Radius: 35mm
Proof Test: ≥ 9.0 N, ≥ 1.0%, ≥ 100 kpsi
Macro-bend Loss: ≤ 0.05 dB
Coating Strip Force: 1.5 N (typical), 1.3 N (min), 8.9 N (max)
Dynamic Fatigue Parameter: 20

CCD LC - LC Singlemode OS2 Duplex Fibre Optic Patch Cable - CCD Networking

How long does shipping take?

Orders can take 3-14 business days to arrive, depending on stock levels and your location.

What is a Media Converter?

A media converter is a networking device that converts one type of network media, such as copper network cabling, to another, such as fibre optic network cabling. This is often used to extend network distances or connect different network types.

What is the difference between Single-Mode and Multi-Mode?

Single-mode fibre uses a thin core to guide light in a single path, enabling long-distance, high-bandwidth transmissions. Multi-mode fibre, on the other hand, has a thicker core that allows multiple light paths to travel simultaneously. While this can increase bandwidth over shorter distances, it can also lead to signal distortion due to the different light paths arriving at different times. This makes multi-mode fibre more suitable for shorter-distance applications, while single-mode fibre is better suited for longer-distance transmissions.

What is an SFP Module?

An SFP module is a small, hot-swappable device that plugs into media converters, switches, network cards, and routers. It provides various connectivity options, such as fibre optic or copper connectors.

What is the difference between Duplex and Simplex?

Simplex Fiber: A single-lane road. Usually, data only travels one way, but "Bi-Di" technology allows two-way traffic on that one lane by using two different colors of light.

Duplex Fiber: A two-lane road. Data travels both ways at once because there are two separate strands of glass—one for sending and one for receiving.

What is PoE (Power Over Ethernet)?

PoE technology transmits electrical power along with data signals over Ethernet cables, eliminating the need for separate power outlets and simplifying network installations, especially for devices like IP cameras and VoIP phones.

What is the difference between Ethernet (Cat) cables?

Ethernet categories (Cat5e, Cat6, Cat6a, etc.) define the speed and frequency the cable can handle. As the number increases, so does the performance.
