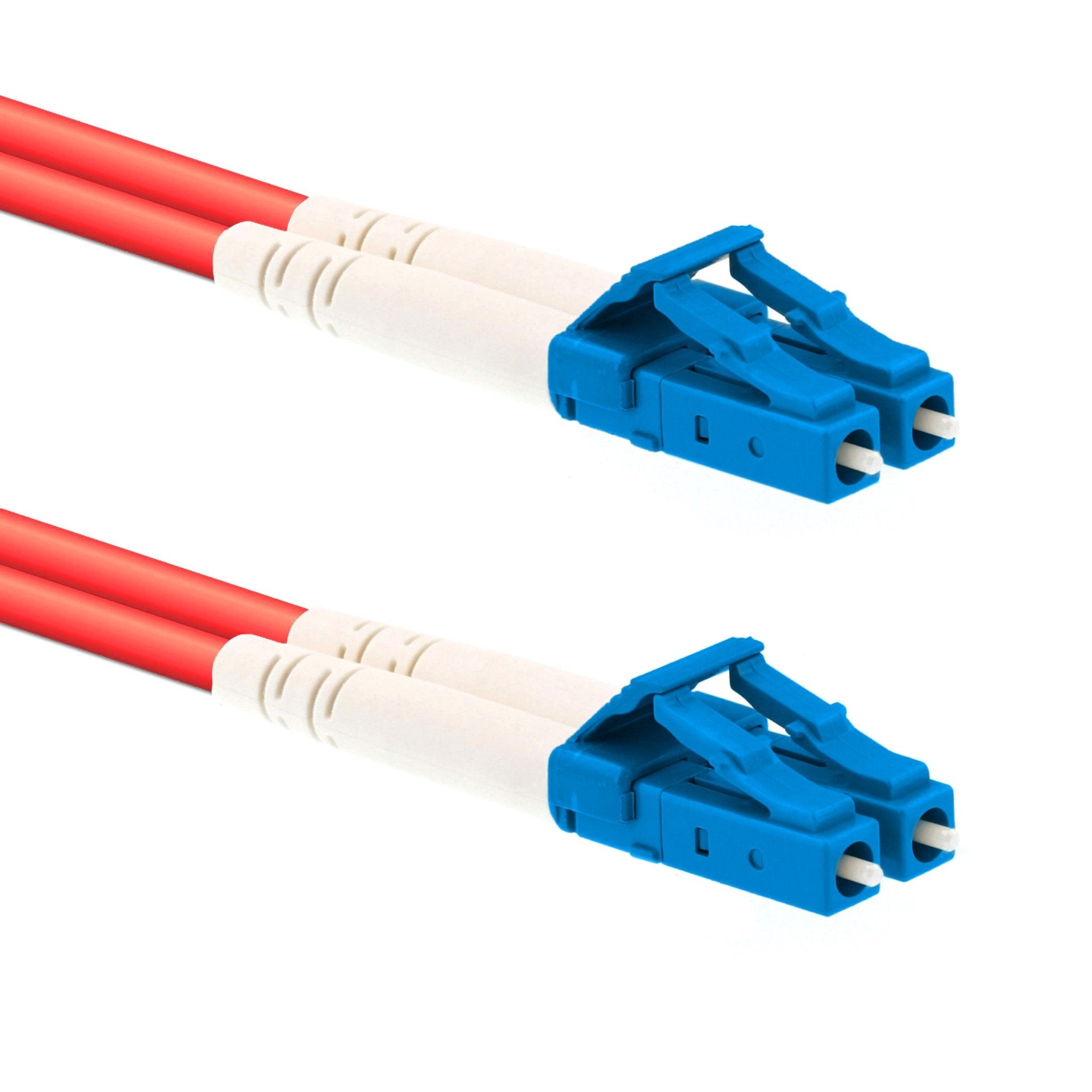

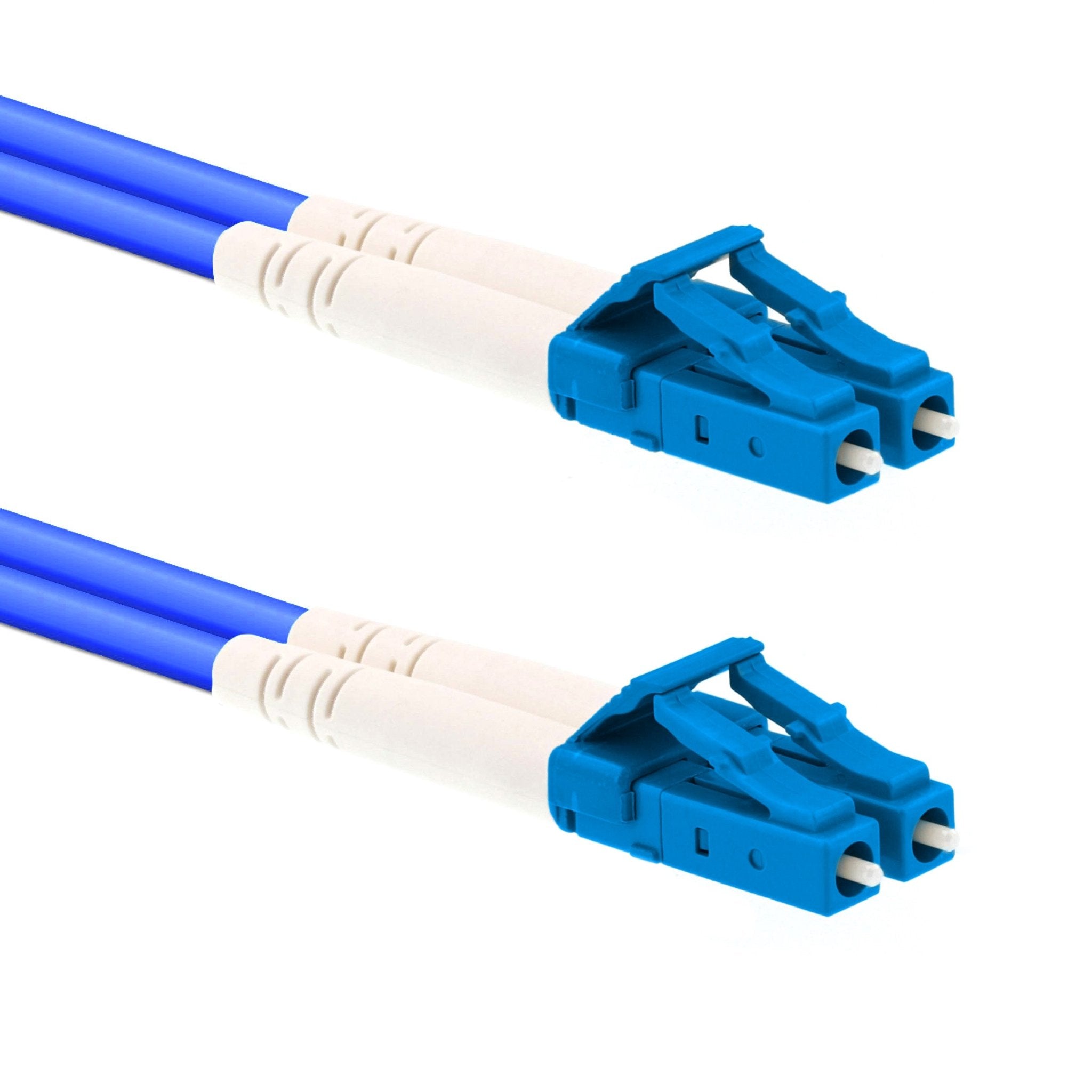

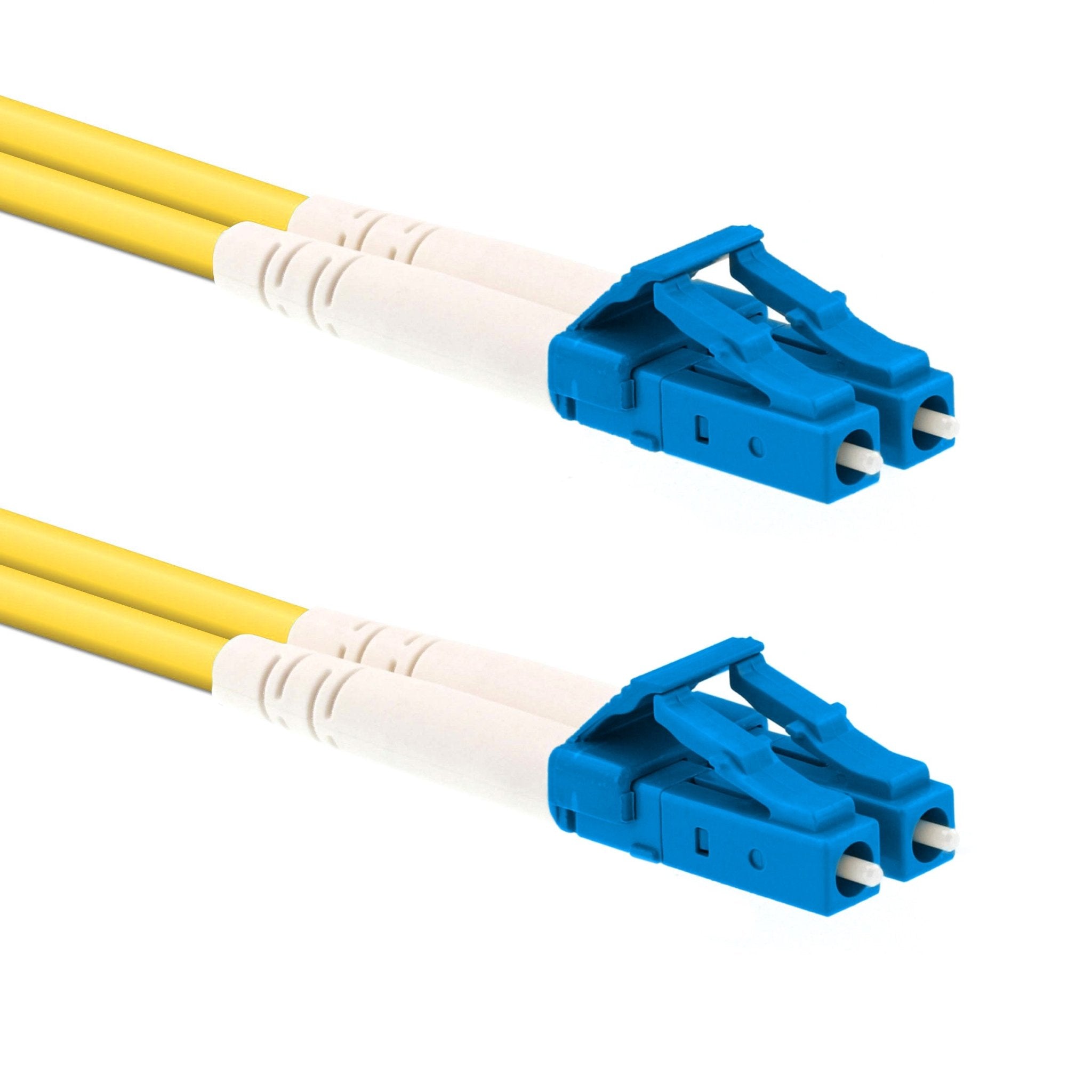

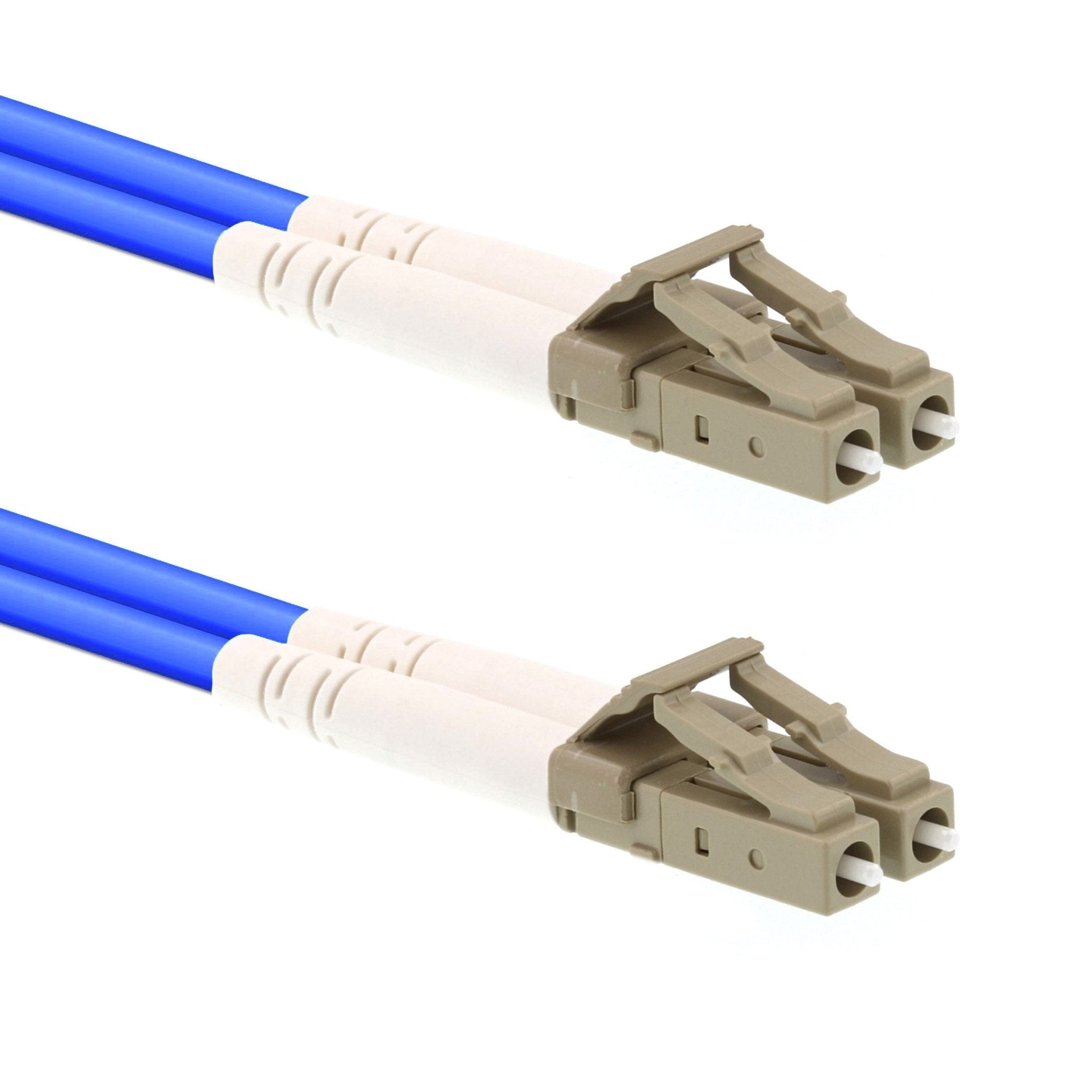

CCD LC-LC Singlemode OS2 Duplex Fibre Optic Patch Cable

SKU: CCD-LC-LC-SM-OS2-0.5M-YELLOW-B
Sale price$10.40 AUD

GST Included

Made-to-Order (14-Day Delivery Time)


Connector: LC-LC
Size: 0.5 Metre
Colour: Yellow + Blue Connector

Core Specifications & Benefits:

  • Expanded Capacity: Full-spectrum operation (1260-1625nm) unlocks 50% more usable wavelengths, significantly boosting transmission capacity.
  • Future-Proof Performance: Optimized for high-speed technologies like DWDM and CWDM.
  • Enhanced Wavelength Availability: Suppresses the 1383nm water peak, enabling E-band operation (1360-1460nm) and providing 100nm of additional usable wavelengths.
  • Seamless Integration: Compatible with existing 1310nm equipment.
  • Reliable & Robust: Superior protection and consistent strip force stability.
  • Precision Engineered: Accurate geometrical parameters minimize splicing loss and maximize efficiency.
  • Single-Mode OS2 Fibre: 9µm core, 125µm cladding.
  • LSZH Jacket: Low Smoke Zero Halogen.
  • Ferrule Housing: Zirconia Ceramic.

Standards Compliance:

  • ITU-T G.652D
  • IEC 11801-1
  • IEC 60793-2-50 type B1.3
  • IEC 61304: Low Smoke
  • IEC 60754: Halogen & Corrosion Free
  • IEC 60332: Flame Retardant
  • Telcordia GR-326-CORE
  • RCM Compliance (SDoC)

Optical Performance:

  • Attenuation:
    • ≤0.34 dB/km at 1310nm & 1383nm (after H2-aging)
    • ≤0.20 dB/km at 1550nm
    • ≤0.24 dB/km at 1625nm
  • Attenuation vs. Wavelength:
    • ≤0.03 dB/km (1285-1330nm)
    • ≤0.02 dB/km (1525-1575nm)
  • Chromatic Dispersion Coefficient:
    • -3.5 to 3.5 ps/(nm·km) (1285-1340nm)
    • ≤18 ps/(nm·km) (1550nm)
    • ≤22 ps/(nm·km) (1625nm)
  • Zero Dispersion Wavelength: 1300-1324nm
  • Zero Dispersion Slope:
    • ≤0.092 ps/(nm²·km)
    • Typical 0.086 ps/(nm²·km)
  • Low PMD: ≤0.06 ps/√km (Link Design Value)
  • Cable Cutoff Wavelength: ≤1260nm
  • Mode Field Diameter: 8.7-9.5μm (1310nm), 9.8-10.8μm (1550nm)
  • Effective Group Index: 1.466 (1310nm), 1.467 (1550nm)
  • Point Discontinuities: ≤0.05 dB (1310nm & 1550nm)
  • Insertion Loss: ≤ 0.3 dB
  • Optical Return Loss:
    • PC SM: > 45 dB
    • UPC SM: > 50 dB
    • APC SM: > 60 dB
  • Repeatability: ≤ 0.2 dB
  • Changeability: ≤ 0.1 dB

Geometrical Characteristics:

  • Cladding Diameter: 125.0 ± 0.7 μm
  • Cladding Non-Circularity: ≤ 1.0%
  • Coating Diameter: 235-250 μm
  • Coating-Cladding Concentricity Error: ≤ 12.0 μm
  • Coating Non-Circularity: ≤ 6.0%
  • Core-Cladding Concentricity Error: ≤ 0.6 μm

Environmental & Mechanical:

  • Operating/Storage Temperature: -40°C to 80°C
  • Environmental Stability: Attenuation variation ≤0.05 dB/km under temperature, humidity, and immersion conditions.
  • Minimum Bend Radius: 35mm
  • Proof Test: ≥ 9.0 N, ≥ 1.0%, ≥ 100 kpsi
  • Macro-bend Loss: ≤ 0.05 dB
  • Coating Strip Force: 1.5 N (typical), 1.3 N (min), 8.9 N (max)
  • Dynamic Fatigue Parameter: 20
