Overview

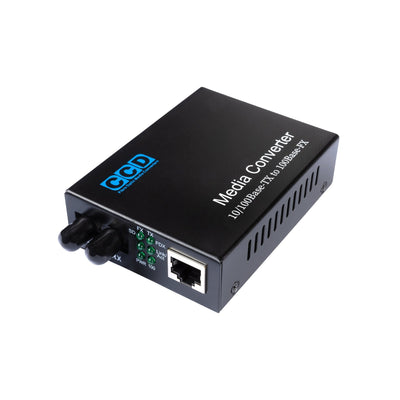

CCD-5100 series is a Fast Ethernet Media Converter that transforms 100Base-TX copper signals into optical signals for fibre optic networks. It can reach network transmission ranges up to 2km, or up to 80km, depending on the fibre type and wavelength.
- TP Port: Auto-negotiation and automatic MDI/MDIX crossover detection.
- Network Performance: Frame buffering (1Mbit), MAC address learning (1K entries).
- Switching Mode: Store and Forward switching.
- Fiber Connectivity: 1310nm or 1550nm wavelength, MMF or SMF.
- Status Monitoring: LED indicators for power, link status, activity, and full-duplex.

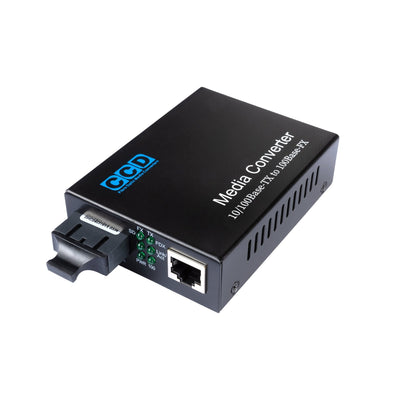

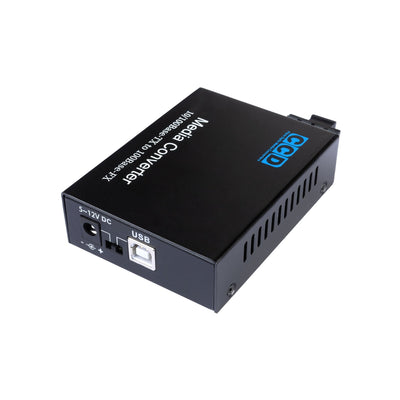

- Connectors and Power: UTP RJ-45 and SFP/SC/ST inputs. USB or AC power.
- Environmental: Operating temperature: 0°C to 50°C, humidity: 5% to 90%.
- Dimensions: 94mm x 70mm x 26mm.
- 5-Year Warranty

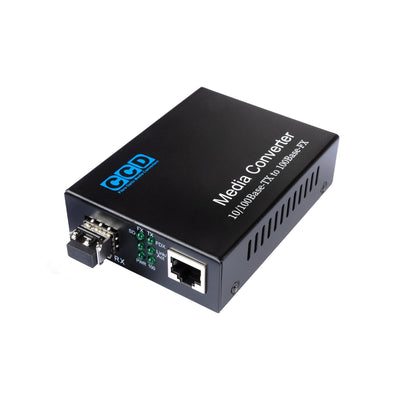

- Removable SFP included with SFP/LC models.
