CCD 14-Slot Media Converter Chassis

CCD-MC-CHASSIS-14-2RU-2AC

$360.00 AUD
Inc GST
14-Day ETA
Power Supply

Overview

The CCD 14-Slot Media Converter Chassis is a high-density solution designed to centralize up to 14 standalone Media Converters within a standard 19-inch rack. This system is specifically engineered for seamless compatibility with CCD-5100, CCD-7100, and CCD-Serial-DB9 Media Converters.

By consolidating power into a single chassis, you eliminate the need for multiple individual power adapters, significantly simplifying cable management and improving overall network reliability.

Streamlined Installation: Simply attach the included bracket to the side of your CCD-Series Media Converter, slide the unit into the chassis slot, and secure it with the mounting screw to establish a firm, reliable power connection.

Key Features

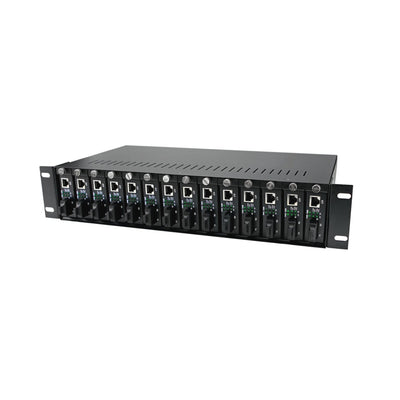

14-Slot High-Density Capacity: Houses up to 14 standalone CCD-Series Media Converters in a space-saving 2RU form factor.

Chassis Works With:

  • CCD-5100 Series (Fast Ethernet)
  • CCD-7100 Series (Gigabit Ethernet)
  • CCD-Serial-DB9 Series (RS-232)

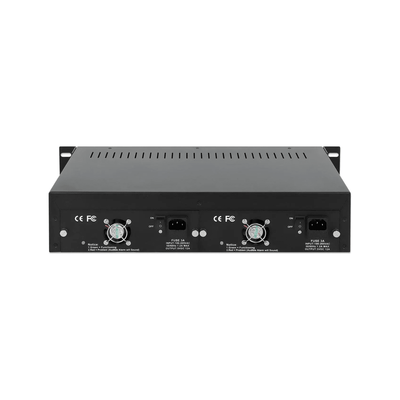

Dual Power Supplies: Can be configured with dual power supplies to ensure 24/7 uptime; if one fails, the other maintains the power supply.

Power Supply Module Options:

  • AC Power Supply Modules 100V–260V
  • DC Power Supply Modules 48V

Hot-Swappable: Replace power supplies or media converters without powering down the entire chassis, ensuring zero network downtime.

Integrated Protection: Built-in circuit breakers protect against over-voltage, over-current, and short circuits.

Technical Specifications

  • Slot Capacity: 14 Slots
  • AC Power Module: 100V – 260V
  • DC Power Module: 48V
  • Chassis Port Power Output: DC 5V, 12A
  • DC Plug Diameter: 2.5/5.5 mm
  • Ripple & Noise: ≤ 50 mV
  • Operating Temperature: 0°C ~ 50°C
  • Dimensions: 485mm (L) x 231mm (W) x 90mm (H)
  • Form Factor: 19-inch Rack-mount, 2RU Height


Redundancy & Maintenance

Dual Power Supply Operation

To maximize system availability, we recommend utilizing dual power supplies. This configuration balances the load between both units and provides seamless failover. If a power module requires maintenance or fails, it can be hot-swapped while the network remains fully operational.

Troubleshooting & Fault Recovery

Alarm Indicators: The Power LED will turn red and an alarm will sound if the electrical current becomes hazardous. The system will return to normal once the fault is cleared.

Fuse Replacement: If the unit is unresponsive and fans are off, check the fuse located directly beneath the AC power inlet.

Cooling System: If the Power LED is green but the internal fans are inactive, the power supply module should be replaced to prevent overheating.

Module Status: If the chassis has power but a specific CCD Media Converter does not, verify the bracket is securely tightened and the converter is fully seated against the backplane.

Media Converters Not Included with Chassis
